Variable Frequency Drive Dispersers

Model DVF Dispersers
Post Mounted, Variable Speed, Heavy Duty
Now available with Vector Drive Controller

The DVF models are heavy duty, high speed Dispersers with standard output torque using high efficiency motors and variable frequency inverter for a state-of-the-art variable speed drive designed into a single set of belt power train, resulting in maximum power delivery to the high speed mixing blade, in lower power consumption, in precise speed adjustments, and in programmable mode for automatic operation based on time, speed, temperature, viscosity, etc.

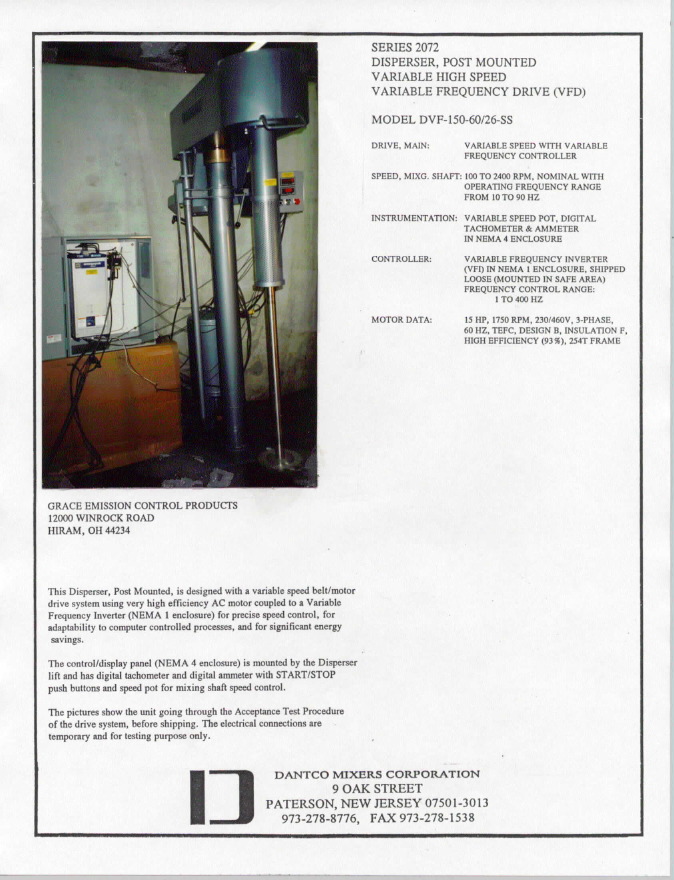

Series 2072 are production models from 5 to 200 HP.

Series Model Description   Product Brief
2072 DVF Variable Frequency Inverter
Production Models
View
View

View
View
View
PDFModel DVF-1000-72/48-TEFC/SS
PDFModel DVF-100-48/21-EX/SS
PDFModel DVF-300-48/29-EX/SS
PDFModel DVF-750-48/29-TEFC/SS
PDFModel DVF-200-48/26-TEFC/SS
PDFModel DVF-200-48/26-EX/SS
PDFModel DVF-250-52/30-TEFC/SS
PDFModel DVF-400-54/36-TEFC/SS (1) (2)
PDFModel DVF-500-52/36-TEFC/SS
PDFModel DVF-600-60/36-TEFC/SS (1) (2)

Other VFI Dispersers:

Series 506: Laboratory/pilot line models, typical speed ranges at the mixing shaft of 200 to 1800 rpm, 1 to 5 HP.
Series 3081: Tank mounted dispersers using high efficiency motors are also available in sizes up to 200 HP.

PDFModel DVF-100-48/21-EX/SS

  • Motor: 10 HP, 1750 rpm, expl. Proof, 3-phase, 460V, Inverter Duty, 20:1
  • Mixing Shaft Speed Range: 400 to 1250 rpm
  • Air-Over-Oil Lift, 48” rise
  • Integral Dutchman Base
  • High Speed Blade, HSF, 8”
  • Controller, NEMA 1, Vector Drive
  • Remote Control Box, NEMA 7 & 9 (explosion proof)
  • Digital Tachometer
    • Speed Pot
    • Digital Ammeter
    • E-stop
    • ON/OFF

This disperser is designed with a variable speed belt/motor drive using inverter duty motor coupled to Vector Drive Controller resulting in precise speed control with significant energy

DVF-100

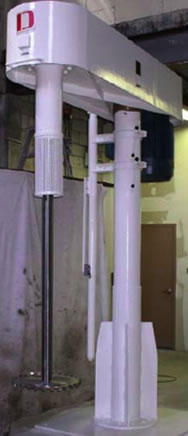

PDFModel DVF-750-48/29-TEFC/SS

  • Motor: 75 HP, 1750 rpm, 3-phase, 230/460V, Inverter Duty, 20:1
  • Mixing Shaft Speed Range: 35 to 1750 rpm
  • Air-Over-Oil Lift, 72” rise
  • Integral Dutchman Base
  • High Speed Blade, HSF, 20”
  • Controller, NEMA 1, Vector Drive
  • Remote Control Box, NEMA 12
    • Digital Tachometer
    • Digital Ammeter
    • Speed Pot
    • E-stop

This Disperser is designed with a variable speed belt/motor drive using inverter duty motor coupled to Vector Drive Controller resulting in precise speed control with significant energy savings.

Bottom Picture: The Controller in NEMA 1 enclosure is shown on the left. The Remote Control Box in NEMA 12 enclosure is shown in the center. The Controller may be mounted in power room. The Remote Control Box may be mounted on the Disperser or on the wall, wherever convenient. These models are also available with explosion proof motors and explosion proof remote control box.

DVF-750

PDFModel DVF-200-48/26-TEFC/SS

  • Motor: 20 HP, 1750 rpm, 3-phase, 230/460V, Inverter Duty, 20:1
  • Mixing Shaft Speed Range: 50 to 1800 rpm (almost 0 to 1800 rpm)
  • Air-Over-Oil Lift, 48” rise
  • High Speed Blade, HSF, 12”
  • Controller, NEMA 1, Vector Drive
  • Remote Control Box, NEMA 12
    • Digital Tachometer
    • Digital Ammeter
    • Speed Pot
    • E-stop

This Disperser is designed with a variable speed belt/motor drive using inverter duty motor coupled to Vector Drive Controller resulting in precise speed control with significant energy savings.

DVF-200

PDFModel DVF-300-48/29-EX/SS

  • Motor: 30 HP, 1750 rpm, expl. Proof, 3-phase, 460V, Inverter Duty, 20:1
  • Mixing Shaft Speed Range: 400 to 1250 rpm
  • Air-Over-Oil Lift, 48” rise
  • Integral Dutchman Base
  • High Speed Blade, HSF, 16”
  • Controller, NEMA 1, Vector Drive
  • Remote Control Box, NEMA 7 & 9 (explosion proof)
    • Digital Tachometer
    • Speed Pot
    • Digital Ammeter
    • E-stop
    • ON/OFF

This Disperser is designed with a variable speed belt/motor drive using inverter duty motor coupled to Vector Drive Controller resulting in precise speed control with significant energy savings.

DVF-300

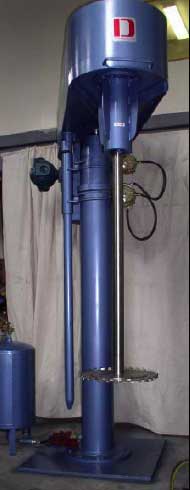

PDFModel DVF-1000-72/48-TEFC/SS

  • Motor: 100 HP, 1750 rpm, 3-phase, 230/460V, Inverter Duty, 20:1
  • Mixing Shaft Speed Range: 80 to 1750 rpm
  • Air-Over-Oil Lift, 72” rise, controls & limit switch
  • Heavy Duty Lift, Extra Height
  • High Speed Blade, HSF, 22”
  • Controller, NEMA 1, Vector Drive
  • Remote Control Box, NEMA 12:
    • Digital Tachometer
    • Digital Ammeter
    • Speed Pot (0 to 100%)
    • Timer (0 to 100 min)
    • E-stop

This Disperser is designed with a variable speed belt/motor drive using inverter duty motor coupled to Vector Drive Controller resulting in precise speed control with significant energy savings.

The Vector Drive Controller is in NEMA 1 enclosure. The Remote Control Box is in NEMA 12 enclosure.

DVF-1000-72/48-TEFC/SS
