Reactors and Kettles

We design and custom fabricate carbon steel, aluminum, stainless steel and nickel alloy process equipment and offer all polishing and finishing options.

Model DJR Jacketed Reactors

PDFJacketed Reactors

All Dantco Jacketed Reactors and Mixing Tanks are cost effective, top quality and built for maximum durability and economy. Dantco's wide range of chemical tank fabrication capabilities and designs include: Portable kettles; Bins on wheels or fork lifted; Cylindrical tanks with flat, sloping, cone or F&D bottoms; Square tanks with flat or sloping bottoms; Storage tanks, cylindrical or square.

Model DJR Half Pipe Coil

80 Gallon Reactor - Vacuum/Pressure

PDFModel TVFD-U-80-75SS

  • SS316
  • Hot oil heating jacket, 75 psig
  • Insulation, 900 degrees F
  • Insulation skin, welded & polished
  • Viton gaskets & seals
  • View-port with light, explosion proof
  • Inside surfaces wear resistant coating
  • Oversize manhole
  • Thermo probe & digital display
  • Mixer mounting flange
  • Various inlet & outlets
  • High speed dispersers or low speed mixers available
Model TVFD-U-80-75SS

120 Gallon Mixing Tank - Vacuum/Pressure

PDFModel TVFD-120-SS316

  • 120 mixing tank, SS316
  • Flanged & dished top & bottom
  • Top F&D head sealed & bolted for ease of cleaning, quick disconnect swing bolts available
  • Viton gasket & seals
  • View-port with safety glass
  • Mixer mounting flange
  • Various inlets & outlets, flanged
  • Pipe legs, carbon steel, epoxy painted
  • Sanitary finishes available
Model TVFD-120-SS316

200 Gallon Reactor - Vacuum/Pressure

PDFModel DSL-150-78/400-2C-EXSS

Sanitary Finish, Vacuum/Pressure, F&D Bottom & Top, Heating Jacket 75 Psig & 350 Degrees F, Variable Low Speed Agitator, High Efficiency Bottom Turbine

  • 200 gallon working capacity, 230 gal. Max.
  • Sanitary polish, 240 grits
  • Hot oil heating jacket, 75 psig
  • 20" manway, Viton seal
  • Glass viewport
  • Sight glass light, EX, 120V
  • 2" insulation, rated 1200 degrees F
  • Insulation skin, sealed ,welded, & polished
  • Inside coating "Plasmadized", .002" min.
  • 15 HP agitator, variable speed, 80 to 400 rpm, explosion proof, vacuum seal

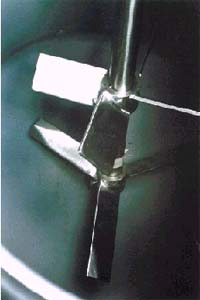

  • 4 pitched blades mid turbine, axial flow
  • Very high efficiency bottom turbine
  • SS 316  vessel & wetted parts
Application: High viscosity, high vacuum mixing of viscoelastic materials process system.
Model DSL-150-78/400-2C-EXSS

Model DSL-150-78/400-2C-EXSS

80 Gallon Kettle - Sanitary, Vacuum/Pressure

PDFModel KVP-80-75-SAN
