Homogenizers - Rotor/Stator

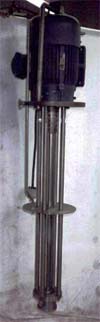

Series 5046 Model DUFDantco Homogenizers/Emulsifiers have rotor/stator heads powered either directly coupled to a motor for fixed speed designs, or through a belt system for variable speed designs. The fixed speed units are usually mounted on a hoist, portable or fixed, while the variable speed are usually mounted on air-over-oil hydraulic cylinder for ease lifting from mixing vessel. The rotor/stator heads are designed either to provide a high movement of the product being mixed (fountain/umbrella type with adjustable plate) or to subject the mix to high shear (slotted stator type with down trust impeller). The above models represent a cross section of possible applications. Any model may have either a standard finish for non sanitary application or sanitary finish equal to 150 or 240 grit. Special units are designed and quoted on request. Variable speed model using Variable Frequency Inverters are also available in standard motor enclosures or in explosion proof motor enclosures.

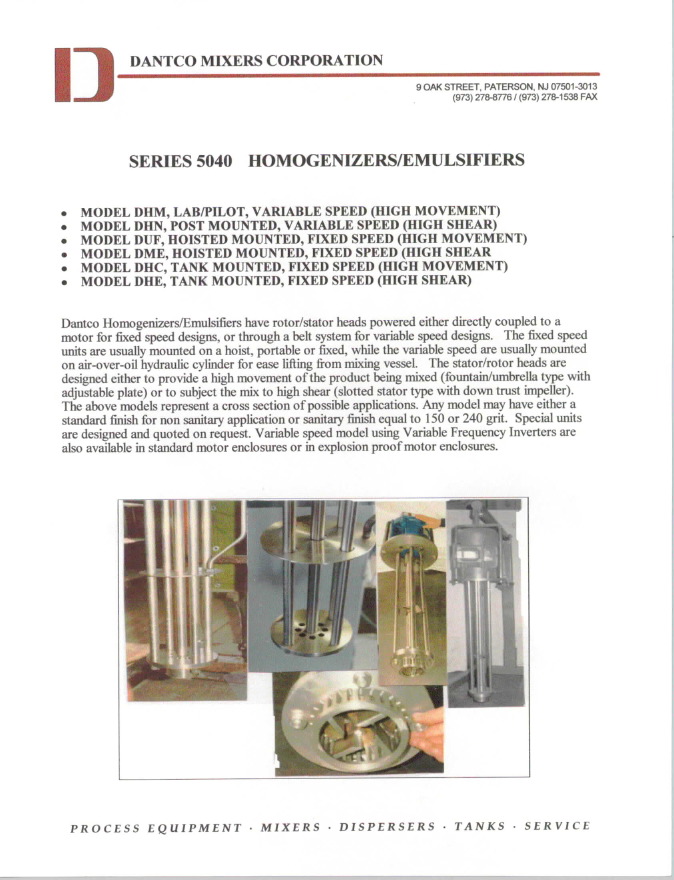

JPEGHomogenzier Overview

Series Description   Product Brief
5040 Lab/Pilot Models View
View
View
PDFModel DHN-020-19/12-EX/SS
PDFModel DHM-020-19/12-EX/SS
PDFModel DHM-020-24/14-EX/SS
5042 Post Mounted, Production View Model DHN-100-42/21-EX/SS
5043 Lab, AC Motor View PDFModel DMV-R-100-PC
5044 Crane Mounted, Production View Model DUF-100-36-EX/SS
5046 Hoist Mounted, Production View
View
PDFModel DME-100-36-EX/SS
PDFModel DME-100-EX-SS304
5049 In-Line Disperser   PDFModel DIL-150-5-SS (1) (2) (3) (4)
PDFModel DSR-150-6-SS (1) (2) (3)

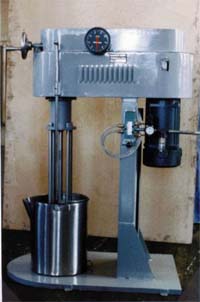

Series 5040 -PDFModel DHN-020-19/12-EX/SS
Lab/Pilot

  • 2 HP motor, 3/60/230/460V, explosion proof
  • Variable speed, 430 to 4100 rpm (up to 6400 rpm, optional
  • Hydraulic jack lift (19”) (air piston lift, optional)
  • Stator rotor head, high shear, slotted, non reversible
  • Down-trust turbine, adjustable
  • Front speed control
  • Can lock, up to 5 gallon
  • SS304 wetted parts
  • Bronze bushing (stainless alloy, optional)

Production units, post mounted configuration, are available with variable speed in sizes up to 100 HP using mechanical or electronic (vector) drives with sheaves and belt system.

Model DHN-020-19/12-EX/SS
Series 5040 - Lab/Pilot

PDFModel DHM-020-19/12-EX/SS - 19" Lift
PDFModel DHM-020-24/14-EX/SS - 24" Lift

  • 2 HP Motor, 3/60/230/460V Expl. Proof
  • Variable Speed, 430 To 4100 RPM (Up To 6400 RPM Optional)
  • Hydraulic Jack Lift (19"), Air Piston Lift Optional
  • Air Piston Lift with Controls (24")
  • Stator Rotor Head, Umbrella/Fountain
  • Adjustable Baffle Plate
  • Front Speed Control
  • Can Lock, Up to 5 Gallon for 19" Lift or 30 Gallon for 24" Lift
  • SS304, Wetted Parts
  • Bronze Bushing (Other Materials Optional)
Application: Solution Preparation For Hot Stamping Film (Web Processing)
Model DHM-020-24/14-EX/SS

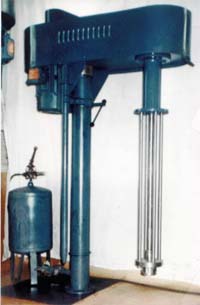

Series 5042 - Model DHN-100-42/21-EX/SS
Post Mounted, Production
  • 10 HP Motor, 3/60/230/460P Expl. Proof
  • Variable Speed, 450 To 3200 RPM (Up To 6400 RPM Optional)
  • Air-Over-Oil Hydraulic Lift (48")
  • Stator Rotor Head, High Shear, Slotted (Non-Reversible)
  • Downtrust Turbine, Adjustable
  • Side Speed Control (Front, Optional)
  • Can Lock, Up To 100 Gallon (Not Shown)
  • SS304, Wetted Parts
  • Bronze Bushing (Other Materials Optional)
Model DHN-100-42/21-EX/SS
Series 5044 - Model DUF-100-36-EX/SS
Crane Mounted, Production
  • 10 HP Motor, 3/60/230/460V Expl. Proof
  • Fixed Speed, 3600 RPM, Reversible
  • Stator Rotor Head, Umbrella/Fountain
  • Adjustable Baffle Plate
  • Ideal For 55 Gallon Drum
  • SS304, Wetted Parts
  • Bronze Bushing (Other Materials Optional)
  • Wiring, Motor Controls, Reversible Switch (Optional)
Model DUF-100-36-EX/SS
Series 5046 - Hoist Mounted, Production

PDFModel DME-100-36-EX/SS
PDFModel DME-100-EX-SS304

  • 10 HP Motor, 3/60/230/460V Expl. Proof
  • Fixed Speed, 3600 RPM, Non-Reversible
  • Stator Rotor Head, High Shear, Slotted
  • Downtrust Turbine, Adjustable
  • Ideal For 55 Gallon Drum
  • SS304, Wetted Parts
  • Bronze Bushing (Other Materials Optional)
  • Starter With Start/Stop Button, Expl. Proof
  • Humidity Proof Wiring & Connectors
  • Hoist On Wheels, Hand Hydraulic Jack, 42" Rise
