Series 501 Lab Air Mixers/Dispersers/Agitators

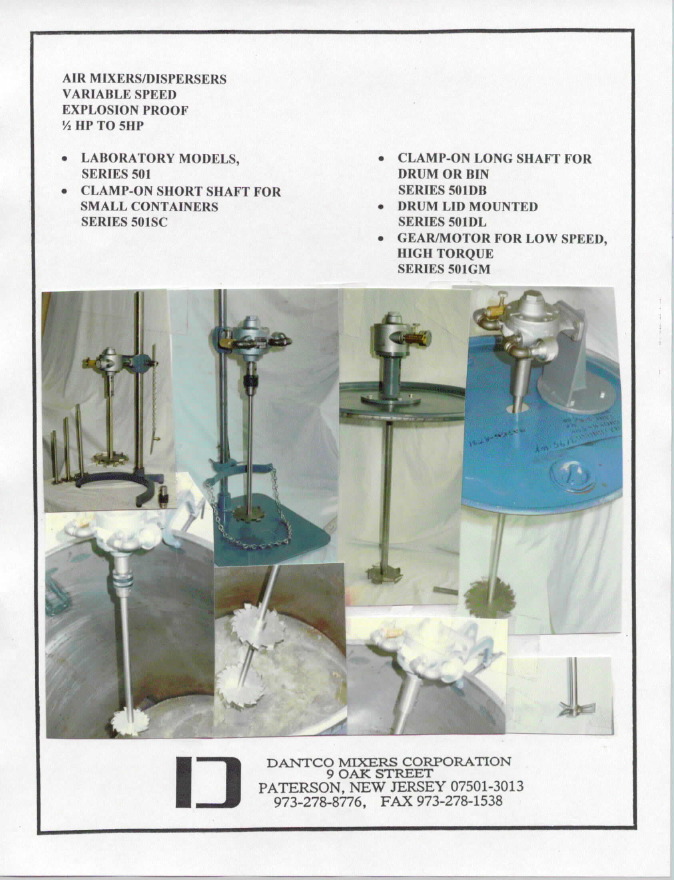

PDFSeries 501 Overview

Series Description   Product Brief
501 Lab Air Mixer/Disperser
View
PDFPrices
PDFModel AM-150-PC-3C

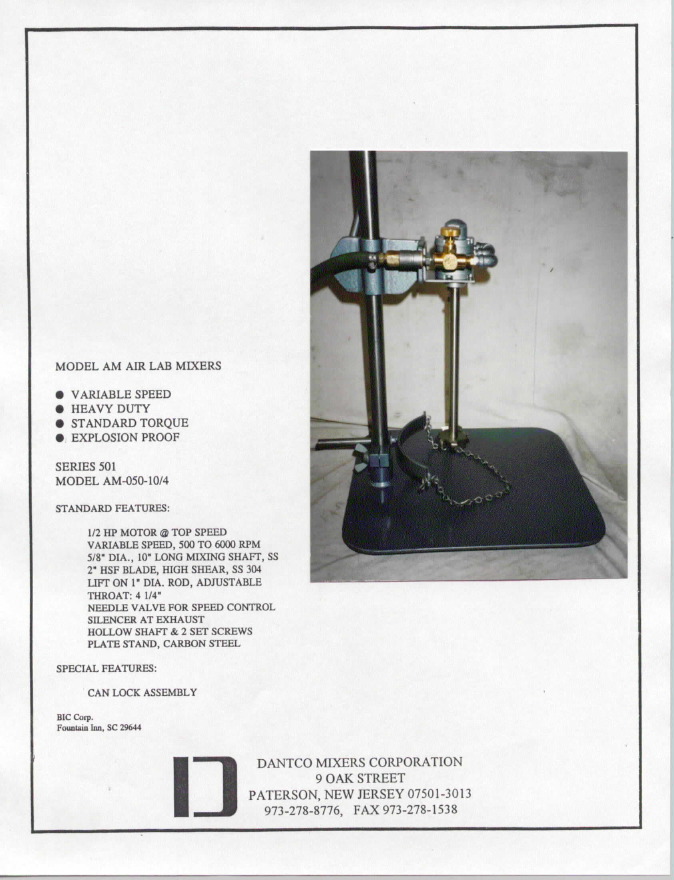

JPEGModel AM-050-10/4
PDFModel AM-150-P-5C/30C-10/6
501AT Lab Air Mixer/Agitator View PDFModel AM-150A-P-20/200RPM (1) (2)
PDFModel AM-150A-P-EX-20/200
501T Lab Air Disperser View PDFModel AM-150-P-3C/30C
501DT Lab/Pilot Mixer View PDFModel DAL-100-18/9-HJLIFT (1) (2) (3)

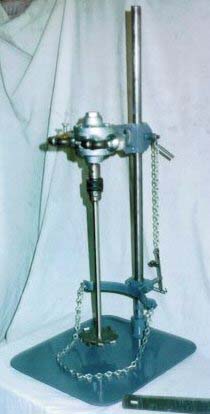

Series 501 -PDFModel AM-150-PC-3C
Lab Air Mixer/Disperser
  • Variable Speed
  • Heavy Duty
  • Standard Torque
  • Explosion Proof
Standard Features
  • 1 1/2 HP @ Top Speed
  • 300 To 3000 RPM
  • 5/8" Dia, 10" Long Mixing Shaft SS304
  • 3" HSF High Shear Blade
  • Lift On 1" Dia. Rod, Adjustable
  • Needle Valve For Speed Control
  • Silencer At Exhaust
  • Plate Stand, Carbon Steel
  • 3-Jaw Chuck & Adapter
Model AM-150-PC-3C

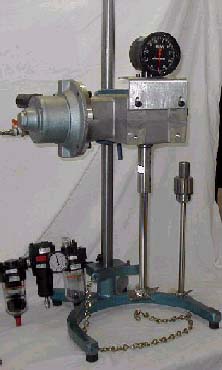

Series 501AT -PDFModel AM-150A-P-20/200RPM
Lab Air Mixer/Agitator
  • Variable speed
  • Heavy duty
  • High torque
  • Explosion proof
  • High viscosity application
Standard Features
  • 1 ½ HP @ top speed
  • 20 to 200 rpm
  • 2” & 3” turbine, type AFF
  • Lift on 1 ¼” dia. rod, adjustable
  • Needle valve for speed control
  • Silencer @ air exhaust
  • Can lock
  • Retort bar stand
  • Tachometer, analog, & adapter
Optional Accessories
  • 3-jaw chuck & adapter
  • Filter regulator lubricator (FRL)
  • 3/8” air line & connectors
  • Mixing shaft for chuck
  • Mixing pails, flat or cone bottom
  • Mixing reactor, cone bottom, 75psig heating/cooling jacket, pressure/vacuum cover
  • Choice of top speed up to 500 rpm
Model AM-150A-P-20/200RPM

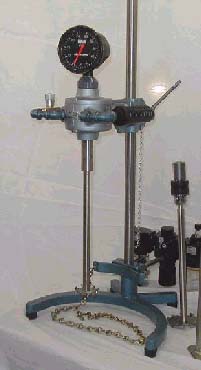

Series 501T -PDFModel AM-150-P-3C/30C
Lab Air Disperser
  • Variable speed
  • Heavy duty
  • Standard torque
  • Explosion proof
  • Mixing/dispersing application
Standard Features
  • 1 ½ HP @ top speed
  • 300 to 3000 rpm, nominal
  • 5/8” or 3/4” mixing shaft SS304
  • 1", 2” & 3” high shear blades (HSF)
  • Lift on 1” dia. rod, adjustable
  • Needle valve for speed control
  • Silencer at air exhaust
  • Can lock
  • Retort bar stand
  • Tachometer, analog & adapter
Optional Accessories
  • 3-jaw chuck & adapter
  • Filter regulator lubricator (FRL)
  • 3/8” air line & connectors
  • Mixing shaft with 2” axial flow turbine for low speed applications
  • Mixing pails, flat or cone bottom, flat split cover
  • Mixing reactors, cone bottom, 75 psig heating/cooling jacket, pressure/vacuum cover

Model AM-150-P-3C/30C
Series 501DT -PDFModel DAL-100-18/9-HJLIFT (1) (2) (3)
Lab/Pilot Mixer
  • Variable low speed
  • Heavy duty
  • High torque
  • Hydraulic hand jack lift
  • Explosion proof
  • High viscosity applications
  • 3-blade butterfly turbine & scrapers
  • 3-blade radial flow aux. turbine

Standard Features

  • 1 ½ HP at top speed
  • 20 to 200 rpm mixing shaft speed
  • ¾” diameter mixing shaft
  • Up to 11” diameter butterfly turbine, type DEF
  • Up to 5” diameter radial flow auxiliary turbine, type RFF
  • Hand jack lift rise of 18”
  • Needle valve for speed control
  • Silencer at air exhaust
  • Can lock, heavy duty
  • Tachometer, analog with adapter

Optional Accessories

  • Filter, regulator, lubricator (FRL)
  • 3/8” air line & connectors
  • Mixing kettle, 15 psig jacket, F&D bottom, ¾ gallon working capacity, 240 grits polish, Model MKJ-1G-15P-SS304
  • Other types of turbines, kettles, pails
Model DAL-100-18/9-HJLIFT

Model DAL-100-18/9-HJLIFT
