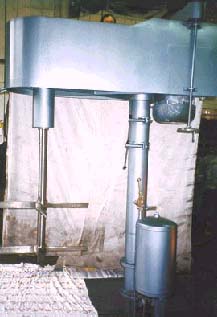

Post Mounted Dispersers/Mixers/Agitators

Series 4050 - Model DVL-300-48/32-EX/SS
Paste Mixer, Variable Low Speed

Standard Features:

• 30 HP motor, expl. proof, 1750 rpm, 3/60/230/460V
• Shaft mounted speed reducer
• Mixing shaft speed range 40 to 190 rpm, nominal
• 3" diameter mixing shaft
• 2 sets, 4 pitched blade turbines, type AFF, axial flow down, 36" diameter, 1/2" x 3" blades
• 8" lift system, air-over-oil, 48" rise, with controls
• Manual head locks
• Side mounted speed control
• All wetted parts, stainless steel, type 304

• Tachometer, analog or digital
• Ammeter, analog or digital
• Process timer with controls
• Motor starter & on/off push button station
• Choice of turbines (helical, gate, bow tie with risers, bottom sweeping, anchor, high efficiency)

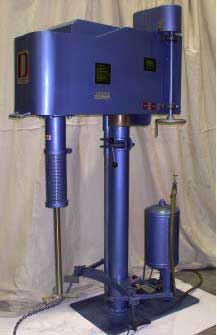

Series 4050 -Model DVL-300-48/32
Drum Mixer, Variable Low Speed

Motor, 5 HP, 1750 rpm, TEFC/EX, 3-phase, 230V

• Gear Reducer, Heavy Duty, FS 2.0
• Mixing Shaft Speed Range: 40 to 160 rpm
• Side mounted speed control hand-wheel
• Air-Over-oil Lift, 42” rise, with controls
• Very High Efficiency Turbine (Type VHE), 12” diameter
• Can lock assembly, adjustable 5 to 55 gal

This Mixer/Blender is heavy duty, high torque belt/gear motor drive using Speed Selector variable center pitch pulleys drive designed into a single belt power train resulting in maximum
power delivery to the low speed turbine. This unit may be used to process viscous products such as inks, adhesives, gels, creams, etc. in containers with capacities of 5 to 55 gallons (pails, drums, square or round bins).

Series 4051 -Model DVLL-010-8/19TEFC
Paste Mixer, Variable Low Speed, Lab/Pilot Line

Standard Features:

• 1 HP motor, TEFC (non-explosion proof), 1/60/115V, 1750 rpm, 6 ft. cord
• Variable pitched pulleys driving speed reducer
• Variable low speed, 40 to 160 rpm
• Speed control knob (top of motor pulley)
• Hydra-jack lift, 19" rise
• Can lock, heavy duty, 1 to 5 gallon
• Axial flow turbine, type AFF, 4" dia.
• 7 gallon mixing vessel on wheels, type TO4W, able to be wheeled in & out of mixing position
• SS304 wetted parts

• Tachometer, analog or digital
• Ammeter, analog or digital

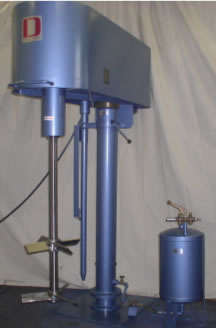

Series 4055 -Model DVLF-200-48/30-TEFC/SS
Post mounted, Variable Low Speed, Vector Drive

• Motor, 20 HP, 1750 rpm, TEFC, 3-phase, 230V, Inverter Duty, 20:1
• Gear Reducer, Heavy Duty, FS 2.0
• Mixing Shaft Speed Range: 6 to 110 rpm
• Air-Over-oil Lift, 48” rise
• Axial Flow Turbine, (Type AFF), 24” diameter (upper)
• Very High Efficiency Turbine, (Type VHE), 26” diameter (lower)
• Controller, NEMA 1, Vector Drive
• Remote Control Box, NEMA 12, humidity proof, including:
  • Digital Tachometer
  • Digital Ammeter
  • Speed Pot
  • Timer (0 to 100 minutes)
  • E-stop
  • ON/OFF

This mixer is designed with a variable speed belt/gear motor drive using inverter duty motor coupled to Vector Drive Controller resulting in precise speed control with significant energy savings. The digital tachometer and ammeter monitor the efficiency of the electric motor while the solid state timer sets the mixing time cycle with automatic motor shut-off at the end of the cycle. The bottom pictures shows the turbines and the remote control box normally located on the wall by the mixer. This unit may be used to process viscous products such as inks, adhesives, gels, creams, etc.

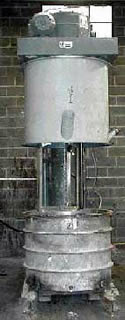

Standard Features:

• 200 gallon change cans, 44” ID x 34” deep
• 40 HP, 1750 rpm, 3/60/460V motor, TEFC, EX
• Delroyd speed reducer
• Variable speed, 10 to 60 rpm
• 24” x 40” x 2 ½” blades
• Fixed track for can positioning
