Dantco

Tank Mounted Mixers/Agitators

Fixed & Variable Speed

Series Model Drive   Product Brief
3020  FSW Right Angle Worm
View PDFModel FSW-250-70/86-TEFC/SS
3021 FSB In-Line Reducer
View
View

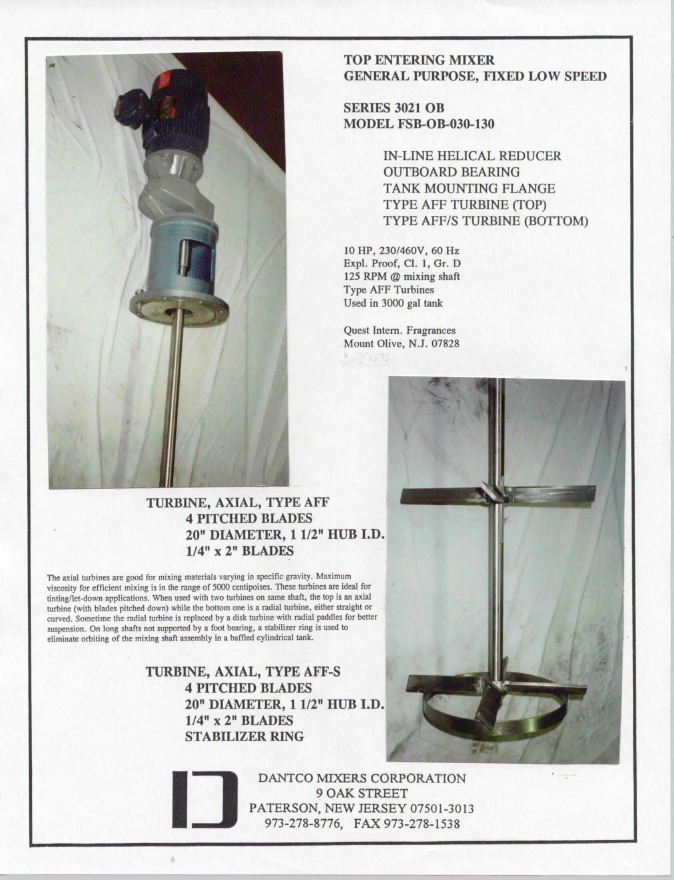

PDFModel FSB-OB-030 (1) (2)
PDFModel FSB-OB-100-130-2T-SS
PDFModel FSB-030-60-1TW-CS

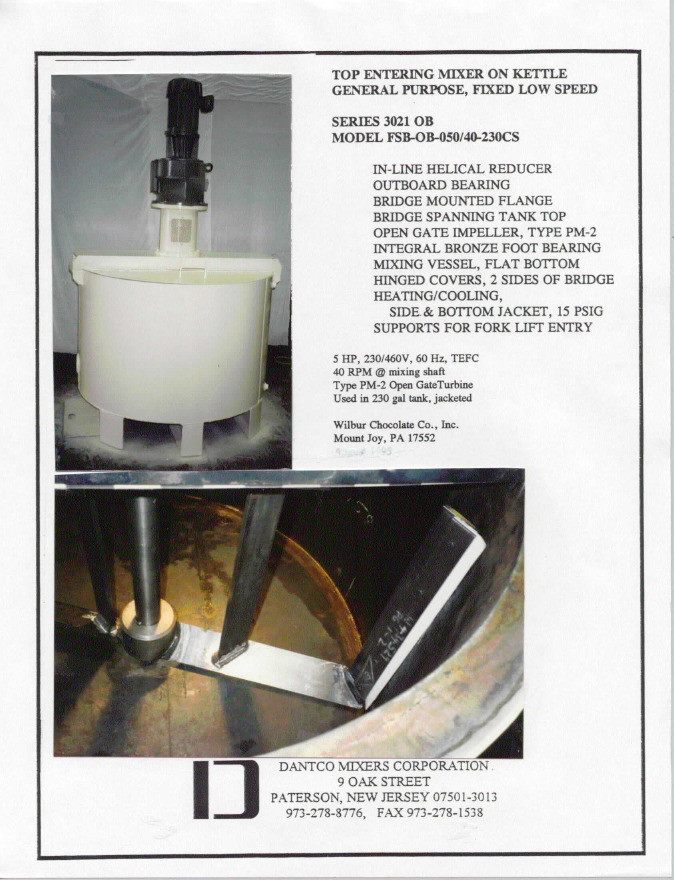

PDFModel FSB-OB-050/40-230CS
PDFModel FSB-OB-050-80-EX/SS
PDFModel FSB-020-60-ITW
PDFModel FSB-030-130
PDFModel FSB-150-84-EX/SS (1) (2) (3)
3021V VSB In-Line Reducer
Inverter Duty Motor
  PDFModel VSB-OB-020
3026 SML In-Line Gear, Side Entry View PDFModel SML-003-36-EX/SS316
3040 DHVF Right Angle Worm/Bevel Gear View PDFModel DHVF-C-250PG-4K-SS

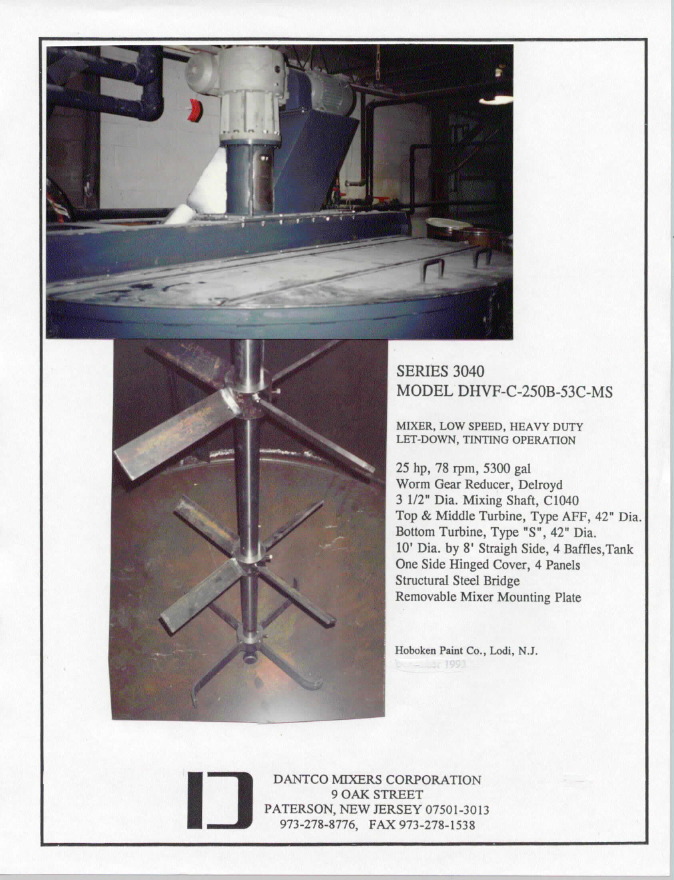

PDFModel DHVF-250B-53C-MS
3040 DRAM Right Angle   PDFModel DRAM-C-300B (1) (2)
3084 SFG In-Line Gear, Belt Drive View PDFModel SFG-C-150-1.4K
3086 SVG In-Line Gear, Belt Drive
Variable Speed
View PDFModel SVG-050-45-40/150-2T/SS

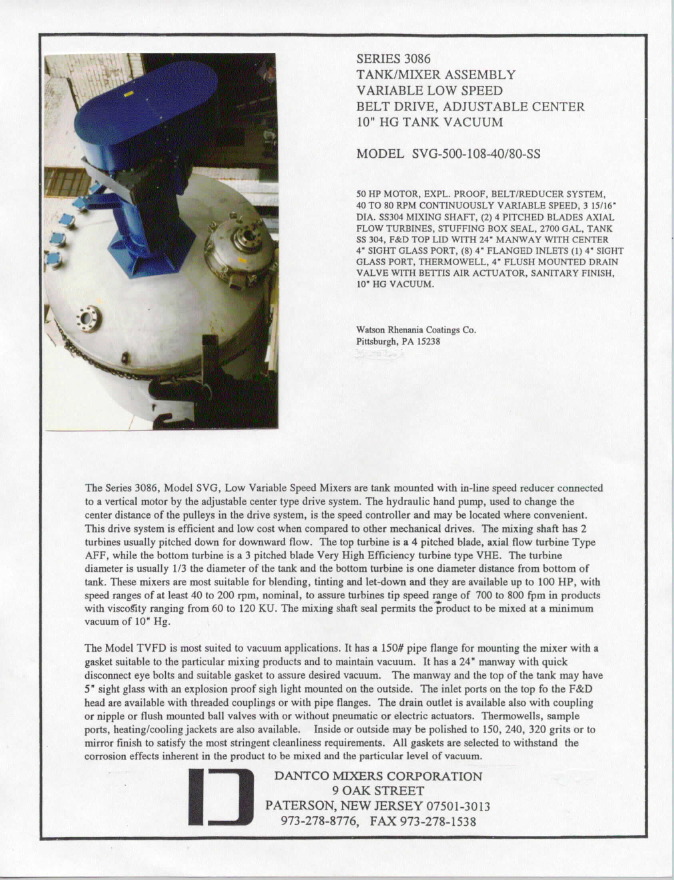

PDFModel SVG-500-108-40/80-EX/SS
3086A DLTV In-Line Gear, Variable Low Speed   PDFModel DLTV-030-24-60/220-TEFC/SS

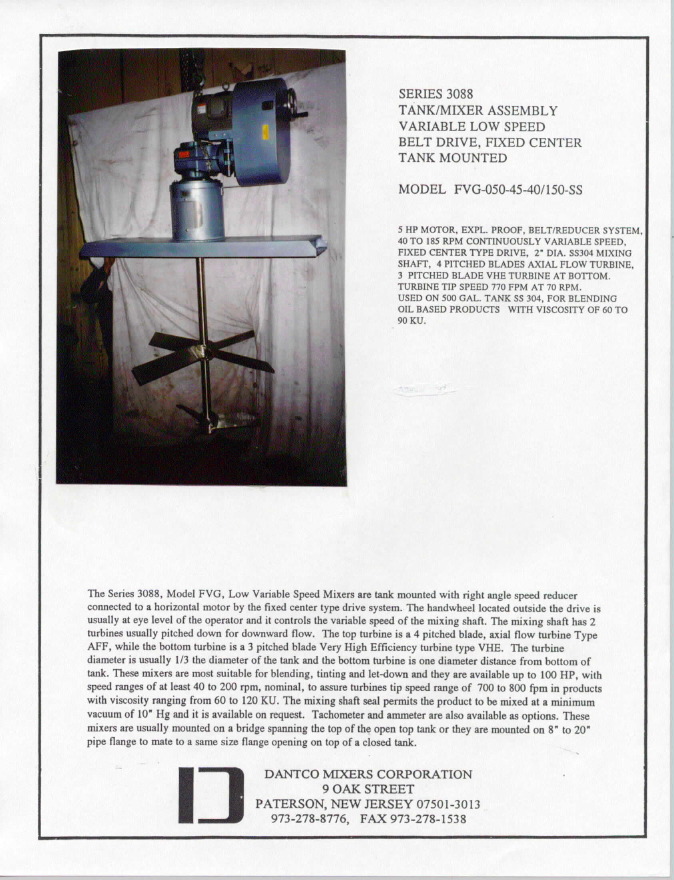

3088 FVG Pulley/Gear Drive
Variable Speed
  PDFModel FVG-050-45-40/150-SS

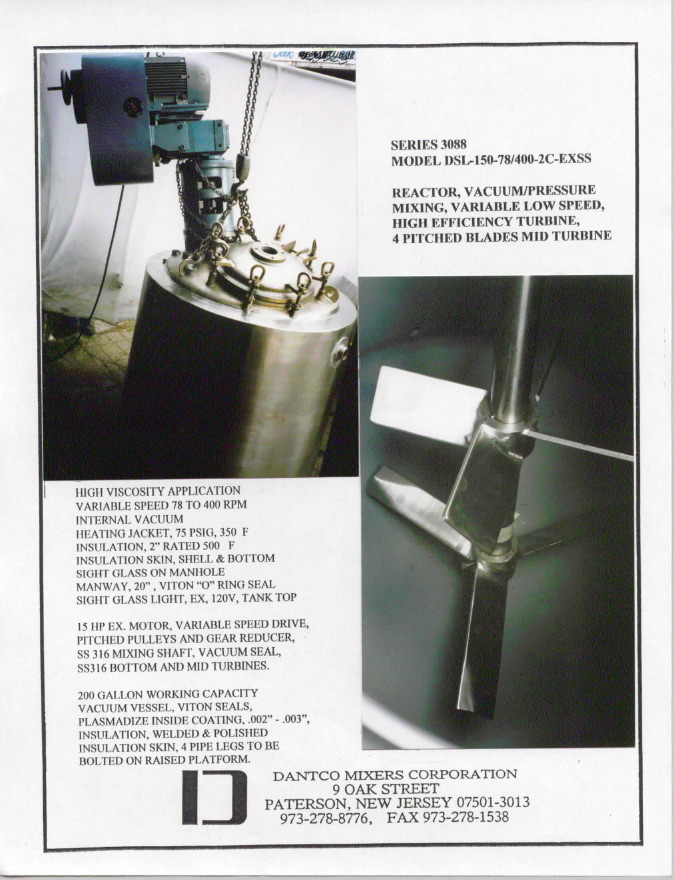

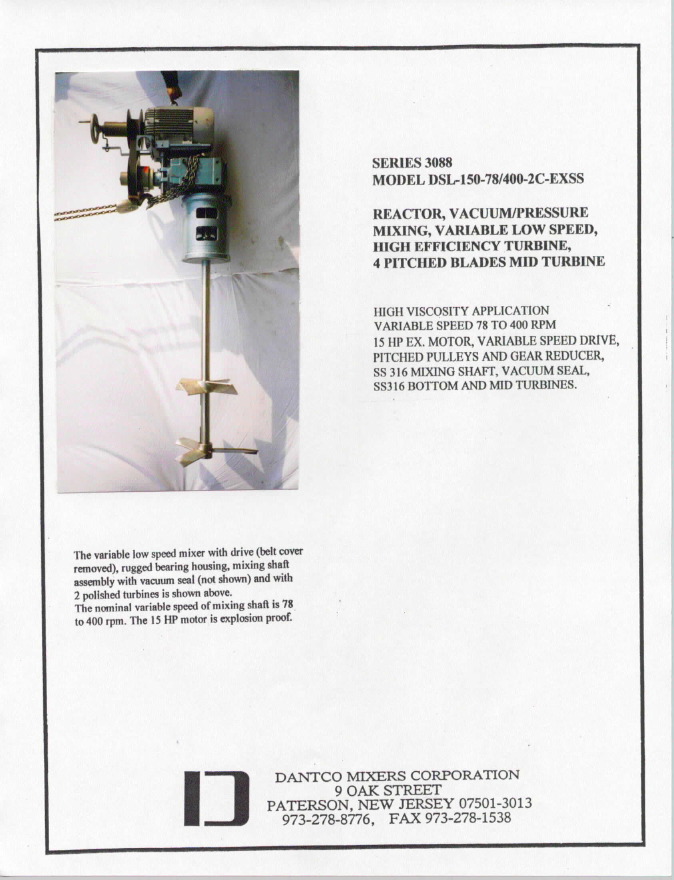

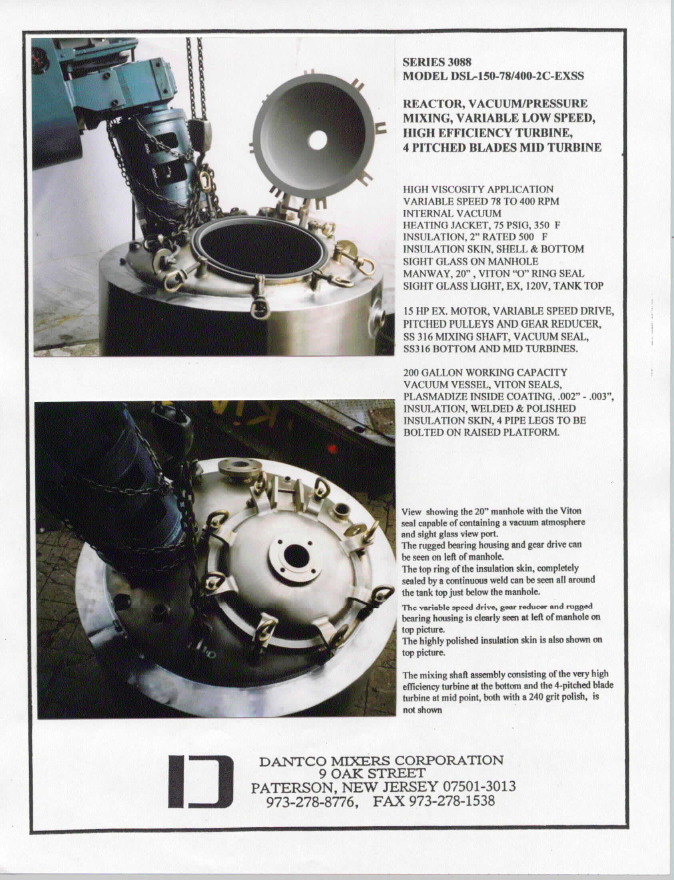

3088 DSL Pulley/Gear Drive
Variable Speed
  PDFModel DSL-150-78/400-2C-EX/SS (1) (2) (3)

These models are most suited for the let-down, tinting and blending operations, specially developed for the paint, ink, and coating industries. These are proven designs used extensively in the industry with many hours of trouble free operation. The five models differ in configuration and power range. They may be supplied with standard or explosion proof AC motors.

These mixers may be used in cylindrical baffled vessels or in square unbaffled mixing tanks, all with same efficiency.

Most of these designs may be modified slightly for variable speed version using high efficiency motors with variable frequency inverter and remote controls with NEMA 1 non explosion proof enclosures or NEMA 12 explosion proof enclosures.

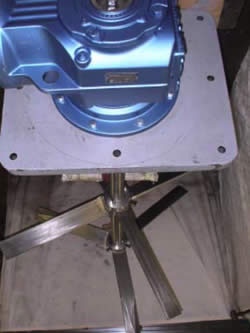

Series 3020 -PDFModel FSW-250-70/86-TEFC/SS
Top Entry Mixer, Fixed Low Speed

Features:

  • 25 HP Motor, TEFC, 3/60/230V, 284TC
  • SEW gear box, right angle, flange mounted on 32” square plate
  • Fixed mixing shaft speed 70 rpm
  • Top Turbine, Type AFF, axial flow, 60” diameter
  • Bottom Turbine, Type VHE, very high efficiency, 60” diameter
  • Mixing Shaft, 3 1⁄2” diameter, (2) 12” long keyways

Model FSW Mixers have a right angle worm gear reducer able to absorb higher shock loads. They may be supplied with variable speed using electronic drives, with various lip and vacuum seals, and with various turbine design and arrangements.

Model FSW-250-70/86-TEFC/SS

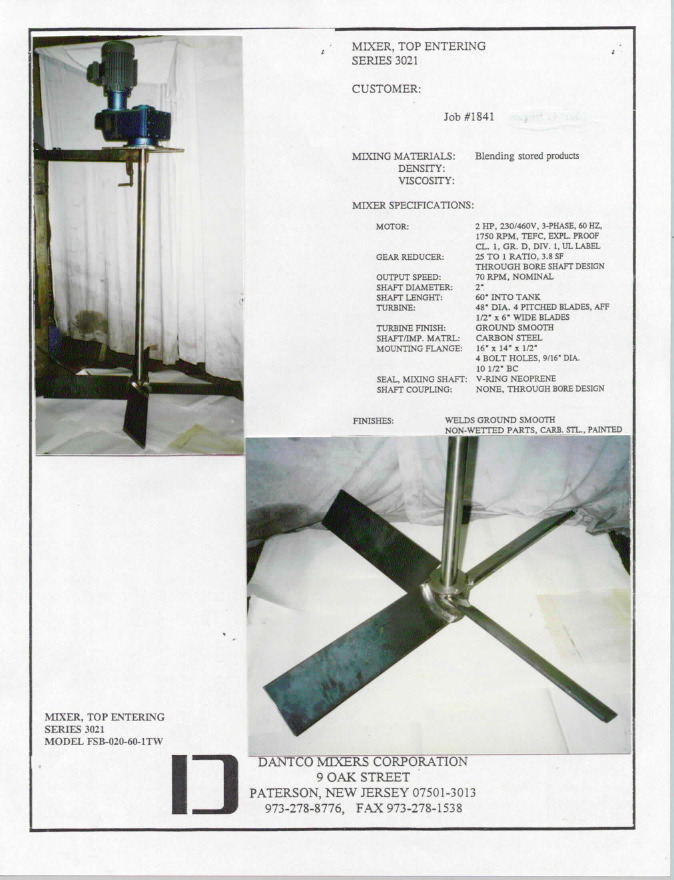

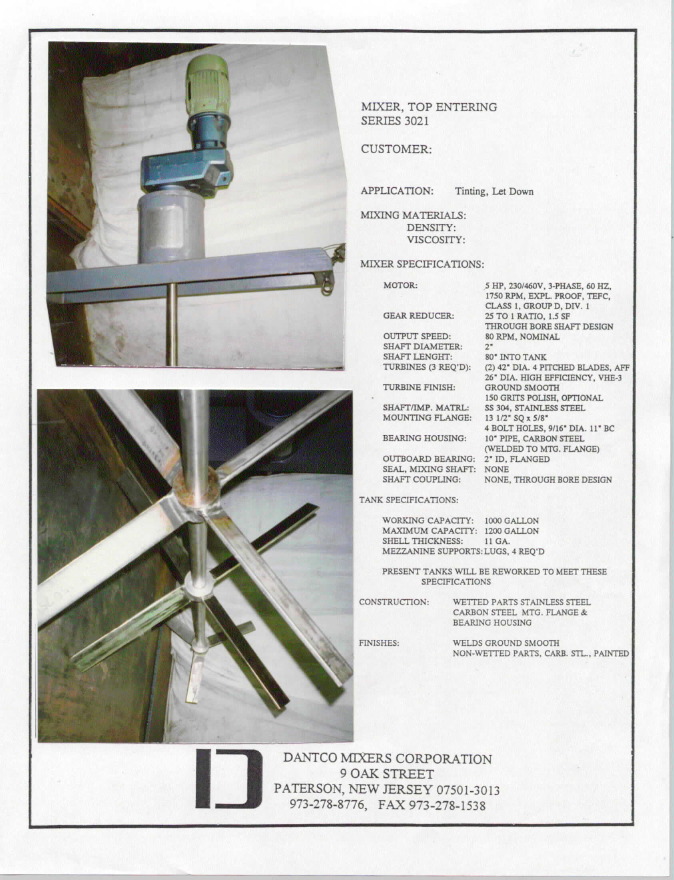

Series 3021 -PDFModel FSB-030-60-1TW-CS
Mixer Assembly for Blending
Heavy Duty, Fixed Speed

Applications: Tinting, let down, stored products

Standard Features:

  • 3 HP, 1750 RPM, expl. proof, 3/60/230/460V
  • Reducer, in line, through bore
  • Mixing shaft speed 70 RPM
  • Mixing shaft diameter, 2"
  • Turbine, 48" diameter,  type AFF, 4 pitched blades, 1/2" x 6", axial down flow
  • Turbine tip speed 800 FPM, nominal
  • Mounting flange, square plate, carbon steel
  • Wetted parts, carbon steel
Special Features (not shown):
  • Bridge to span top of tank, carbon steel, structural
  • Electrical controls

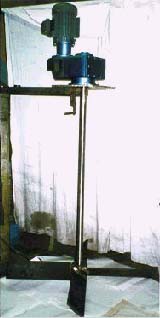

Model FSB-030-60-1TW-CS

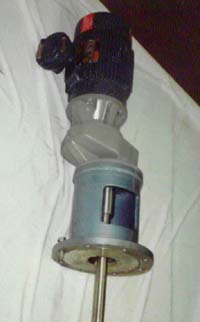

Series 3021 -PDFModel FSB-OB-100-130-2T-SS
Mixer Assembly for Blending
Heavy Duty, Fixed Speed

Application: Mixing stored products (fragrance oils)

Standard Features:

  • 10 HP, 1750 rpm, expl. proof, 3/60/230/460V
  • Reducer, in line, through bore
  • Mixing shaft speed 125 rpm
  • Mixing shaft diameter, 1 1/2"
  • Mid turbine, 28" diameter, type AFF, 4 pitched blades, 1/4" x 2", axial down flow
  • Bottom turbine, 28" diameter, type AFF-S, 4 pitched blades, 1/4" x 2", stabilizer, axial flow down
  • Turbine tip speed 900 fpm, nominal
  • Mixing shaft seal, packing gland, 5 psig
  • Mounting flange, 8" ANSI, carbon steel clad with SS
  • Wetted parts, stainless steel, type 304
Special Features (not shown):
  • Storage Tank, Vertical, Model TVFD-3.1K-SS, with F&D flanges top & bottom, top manhole & fittings, on 4 legs
  • Electrical controls

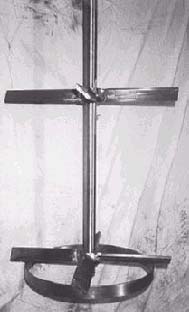

Model FSB-OB-100-130-2T-SS
Model FSB-OB-100-130-2T-SS

Series 3026 -PDFModel SML-003-36-EX/SS316
Side Entry Mixer
Fixed Low Speed, Flange Mounted

Features:

  • 3 HP motor, 1/60/208V, expl. proof, Class 1, Group D
  • In-line helical reducer, 4:1 ratio
  • Mixing shaft speed, 420 rpm
  • Seal housing, packing gland seal, 75 psig max
  • Mounting flange, 8” standard pipe, 150#
  • Marine type propeller, 8” diameter, SS316
  • Mating flange with 9” ID
Model SML-003-36-EX/SS316

Series 3040 -PDFModel DHVF-C-250PG-4K-SS
Mixer Assembly for Blending
Heavy Duty, Fixed Speed

Application: Tinting, let down, water base
Density: 10.5 lbs/gal
Viscosity: 90 to 130 KU
Square tank capacity: 4000 gallon

Standard Features:

  • 25 HP, 1750 rpm, expl. proof, 3/60/230/460V
  • Reducer, Delaval, helical gear, dry well construction
  • Mixing shaft speed 78 rpm
  • Mixing shaft diameter, 3.5"
  • Top & mid turbine, 36" diameter,  type AFF, 4 pitched & bolted blades, axial down flow
  • Bottom turbine, 42" diameter, type VHE, 3 blade, radial flow, very high efficiency
  • Turbine tip speed 800 fpm, nominal
  • Mounting flange 10" ANSI, carbon steel
  • Shaft seal packing gland, 5 psig
  • All wetted parts SS304
  • Weight 3000 lbs
Special Features (not shown):
  • Bridge to span top of tank, carbon steel, structural
  • Square tank, 8 1/2 foot square x 8 1/2 foot high, SS304,  sloping bottom, on 4 legs, closed top with manhole & fittings
  • Electrical controls
Model DHVF-C-250PG-4K-SS

Model DHVF-C-250PG-4K-SS

Series 3084 - PDFModel SFG-C-150-1.4K
Mixer Assembly for Blending
Heavy Duty, Fixed Speed, In-Line Gear, Belt Drive

Application: Tinting, let down, water base
Density: 10.5 lbs/gal
Viscosity: 90 to 130 KU
Square tank capacity: 1400 gallon

Standard Features:

  • 15 HP, 1750 rpm, expl. proof, 3/60/230/460V
  • Reducer, in line, through bore
  • Belt drive gear to motor
  • Mixing shaft speed 78 rpm
  • Mixing shaft diameter, 3"
  • Top & mid turbine, 32" diameter, type AFF, 4 pitched  blades, axial down flow
  • Bottom turbine, 38" diameter, type AFF, 6 blades, axial flow up
  • Turbine tip speed 800 fpm, nominal
  • Mounting bridge, structural, carbon steel
  • All wetted parts carbon steel
Special Features (not shown):
  • Square tank, 6 foot square x 7 foot high, carbon steel,  cone bottom, on 4 legs, closed top with hinged covers & fittings
  • Tank maximum capacity 1400 gallon
  • Electrical controls
Model SFG-C-150-1.4K-CS

Model SFG-C-150-1.4K-CS

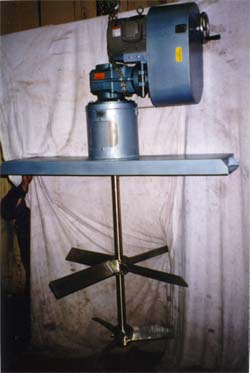

Series 3088 -PDFModel SVG-050-45-40/150-2T/SS
Mixer Assembly for Blending
Heavy Duty, Fixed Speed, Right Angle Gear, Belt Drive

Application: Tinting, let down, water/oil base
Density: 10.5 lbs/gal
Viscosity: 90 to 130 KU
Square tank capacity: 1400 gallon

Standard Features:

  • 5 HP, 1750 rpm, expl. proof, 3/60/230/460V
  • Reducer, right angle
  • Variable pitched pulleys for variable speed
  • Mixing shaft speed range 40 to 140 rpm, nominal
  • Mixing shaft diameter, 2"
  • Mixing shaft seal, packing gland
  • Mid turbine, 42" diameter,  type AFF, 4 pitched  blades, axial down flow
  • Bottom turbine, 28" diameter, type VHE, 3 blades, radial flow
  • Turbine tip speed 800 fpm, nominal
  • Mounting bridge, structural, carbon steel
  • All wetted parts stainless steel, type 304
Special Features (not shown):
  • Cylindrical bottom tapered tank, 54" diameter x 62" high, stainless steel, 17" tapered section, 36" dia dished only bottom, (4) 5" baffles, on 4 legs, closed top with hinged covers & fittings
  • Tank batch capacity from 250 to 500 gallon
  • Tachometer, analog (expl. proof)
  • Ammeter, analog, expl. proof enclosure
  • Electrical controls
Model SVG-050-45-40/150-2T/SS
