Top Entering Dispersers/Mixers/Agitators
Low-Cost, Clamp or Tank Mounted, Fixed and Variable Speed
These dispersers and mixers are economy models and are used in
various batch sizes where product variations are kept to a minimum. They
may be used as top or side entering units with appropriate seals, outboard
bearings and flange mounts. These units may be modified for sanitary applications
with vacuum/pressure seals and polished shafts and turbines.

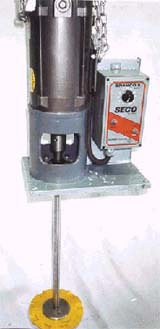

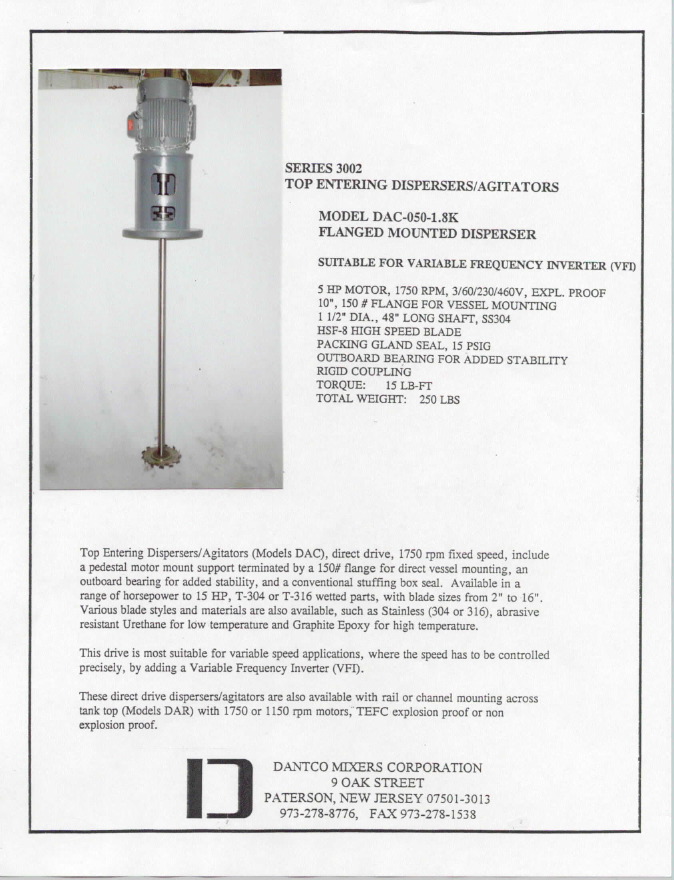

Series 3002, Model
DAC-050-100/1700-EX/SS
Flange Mounted Disperser, Variable Frequency Drive
Application: Dispersion in fixed vertical tank
Standard Features:
- 5 HP motor, inverter duty, expl. proof, 5:1 ratio, constant torque,
3/60/230/460V input
- NEMA 1 controller (to be placed in safe area) (not shown)
- 250 to 1250 rpm variable speed range, operating
- 48" long, 1 1/2" diameter mixing shaft, SS304
- 8" dia. high shear blade, type HSF
- Mixing shaft seal, packing gland, 5 psig
- Outboard bearing on mixing shaft for added stability
- Rigid coupling from motor to mixing shaft
- Mounting flange, 8" ANSI, carbon steel clad with SS
- Wetted parts, stainless steel, type 304
- Weight, 250 lbs
|
 |

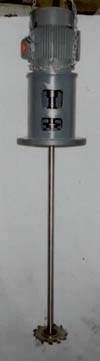

Series 3003, Model
DDC-010-100/1750-TEFC/SS
Flange Mounted Disperser, Variable High Speed, SCR Controls
Application: Dispersion in fixed vertical tank, water base
Standard Features:
- 1HP motor, 115v, 1-phase, 60 Hz, TEFC motor
- SCR, solid state controls, ON/OFF, SLOW/FAST switches
- 100 to 1750 rpm variable speed range, operating
- 20" long, 1" diameter mixing shaft, SS304
- 8" dia. high shear Poly blade, abrasion resistant
- Mixing shaft seal, packing gland, 5 psig (none)
- Outboard bearing on mixing shaft for added stability
- Rigid coupling from motor to mixing shaft
- Mounting flange, square plate, carbon steel clad with SS
- Wetted parts, stainless steel, type 304
- Weight, 100 lbs
|
 |

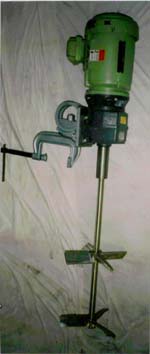

Series 5015 - Model
DCE-100-350/60-2/10-EX/SS
Portable Mixer, Clamp Mounted, Fixed Low Speed
Application: Mixing fragrance oil
Standard Features:
- 1 HP motor, expl. proof, 1750 rpm, 3/60/230/460V
- Reducer, in line, flanged
- Mixing shaft speed 350 rpm
- Mixing shaft diameter 7/8", 36" long
- Mid turbine, 10" diameter, type AFF, 4 pitched blades, 1/4" x
2", axial flow down
- Bottom turbine, 10" diameter, type VHE, 3 blade, radial flow,
very high efficiency
- Rigid sleeve coupling, keyed
- Clamp, adjustable, heavy duty (with stops)
- Wetted parts, stainless steel, type 304
- Weight, 75 lbs
|
 |

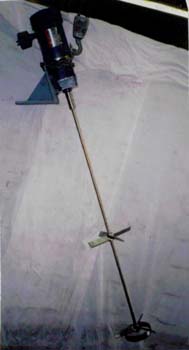

Series 5016 -Model
DTE-100-350/60-2/12-EX/SS
Portable Mixer, Fixed Mount, Fixed Low Speed
Application: Mixing fragrance oil
Standard Features:
- 1 HP motor, expl. proof, 1750 rpm, 3/60/230/460V
- Reducer, in line, flanged
- Mixing shaft speed 350 rpm
- Mixing shaft diameter 7/8", 60" long
- Mid turbine, 12" diameter, type AFF, 4 pitched blades, 1/4" x
2", axial flow down
- Bottom turbine, 12" diameter, type AFF-S, 4 pitched blades, 1/4" x
2", stabilizer, axial flow down
- Rigid sleeve coupling, keyed
- Tank side mounted adapter plate
- Wetted parts, stainless steel, type 304
- Weight, 75 lbs
|
 |
Series 5016A -Model
DTH-100-200/600-EXSS
Portable Mixer, Fixed Mount, , Variable Frequency Drive (VFD)
Standard Features:
- 1 HP motor, inverter duty, expl. proof, 5:1 ratio, constant
torque, 3/60/460V
- NEMA 1 controller (to be placed in control room) with ON/OFF and
SLOW/FAST push buttons
- Humidity proof wiring
- 100 to 600 rpm variable speed range
- 48" long , 7/8" diameter mixing shaft, SS304
- 12" diameter high efficiency turbine with stabilizer
- 160 gallon tank, cone bottom, pipe leg supports
- Hinged tank cover with splash guard and fittings.
|
 |
|
