Systems for Mixing Chocolate

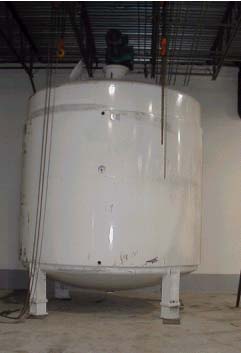

Tank/Mixer Assembly
Series 3040C, Model DKAF-300-10K-CS
Fixed Speed, Heavy Duty

Specifications

• Density: TBD
• Viscosity: 3000 cps max
• Tank working capacity: 10,000 gallon
• Carbon steel construction with inside and outside finish

• Motor, 30 HP, 1750 rpm, TEFC, 3/60/460V
• Reducer, SEW, flange mounted, hollow shaft
• Mixing shaft speed 44 rpm
• Mixing shaft dia. 4.0”
• Mid turbine, Type AFF, 48” dia.
• Bottom turbine, Type AFF, 60” dia.
• Tank/Mixer OAH 18’-6”
• Tank diameter 12’-0”
• Heating/Cooling Jacket, straight section, 15 psig
• Baffles 8”, 4 req’d
• Inside finish, sandblast & coated with mineral oil
• Outside finish, red oxide primer, 2 coats white enamel
• Load cells on pad with wiring and digital display
• Insulation, straight section

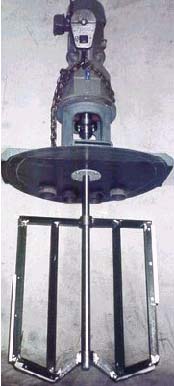

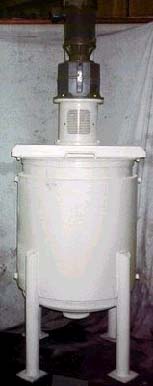

Tank/Mixer Assembly
Series 3021OB, Model FSB-OB-030-130-CS
Fixed Speed, Heavy Duty

Specifications

• Density: TBD
• Viscosity: 5000 cps max
• Tank working capacity: 100 gallon
• Carbon steel construction

• Motor, 3 HP, 1750 rpm, TEFC, 3/60/230V
• Reducer, in line helical, flange mounted
• Outboard bearing
• Mixing shaft speed 30 rpm
• Turbine, Gate, type GB-2
• Heating/cooling jacket, straight section, 15 psig
• Inside finish, wiped clean
• Outside finish, red oxide primer, 2 coats of white enamel
• Tank, F&D bottom, hinged cover, pipe leg supports, flanged drain

Tank/Mixer Assembly
Series 3021OB, Model FSB-OB-050-230-CS
Fixed Speed, Heavy Duty

Specifications

• Density: TBD
• Viscosity: 5000 cps max
• Tank working capacity: 230 gallon
• Carbon steel construction

• Motor, 5 HP, 1750 rpm, TEFC, 3/60/230V
• Reducer, in line helical, flange mounted
• Outboard bearing
• Mixing shaft speed 40 rpm
• Turbine, Open Gate, type PM-2
• Heating/cooling jacket, straight section & bottom, 15 psig
• Inside finish, wiped clean
• Outside finish, red oxide primer, 2 coats of white enamel
• Tank, flat bottom, hinged cover, horizontal I beam
