Skidded Process Equipment

Color Process System

Color Process System

Heated Holding Vessel

• 150 gallon jacket tank, 15 psig hot water
• Cone bottom, SS304
• Hinged cover, splash guard, NPT inlets, exhaust collar (6" x 6")
• Carbon steel legs

• 150 gallon, cone bottom, SS304, mixing tank
• Hinged cover, splash guard, NPT inlets, exhaust collar (6" x 6")
• 1 HP inverter duty, explosion proof, motor, 12" Type VHE turbine with stabilizer
• Variable Frequency Controller (mounted in safe area)
• Carbon steel legs

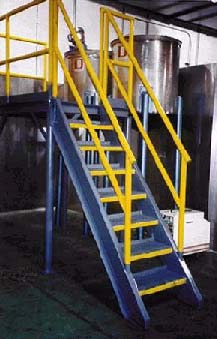

• Platform, free standing, modular (4' x 8')
• Diamond plate deck & steps
• 42" high railing
• 4" kick plate
• 3" pipe legs & pads
• All carbon steel, painted for safety

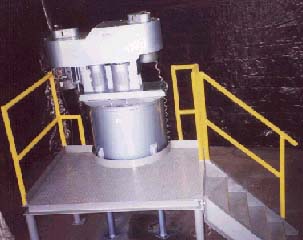

Product Drain System

• High viscosity application
• Dual range, dual motors

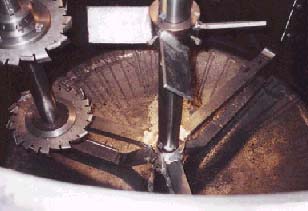

• Two mixing shafts,
• Variable high speed blades
• Variable low speed anchor
• Top down flow turbine

• 10 HP variable high speed disperser
• 600 to 1800 RPM
• (2) HSF-08 high shear blades
• 5 HP variable low speed mixer
• 20 to 60 RPM
• 3-blade anchor turbine/scrapers
• 4-blade top turbine (down flow)
• 150 gallon (max) tank, F&D bottom
• Hinged covers, drain trough
• Working platform with steps

Viscoelastic Process System

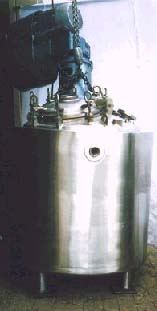

Vacuum Vessel With Heating Jacket
Variable Speed Agitator

Model DSL-150-78/400-2C-EXSS

• 200 gallon working capacity
• Sanitary polish, 240 grits
• Hot oil heating jacket, 75 psig
• 2" insulation, shell & bottom, rated 1200 degrees F
• Insulation SS skin, sealed, welded & polished
• Inside coating "Plasmadize", .002" min.
• 15 HP agitator, variable speed, 80 to 400 rpm, explosion proof, vacuum mixing shaft seal
• 4 pitched blades mid turbine, axial flow, polished
• Very high efficiency bottom turbine, polished
• SS316 vessel & wetted parts
• Thermowell & digital temperature display
• Glass view port & view port light, expl. proof.
• 20" manway, Viton vacuum seal

• Vacuum pump & controls
• Elevated working platform
• Product drain system
• Product packaging
