Small Portable Mixing Tanks, Kettles & Pails
Portable Stainless Steel Mixing Tanks
- Cone Bottom, up to 60 Degrees
- Heating/Cooling Jacket with Spiral Internal Baffling
- Cover with Mixer Entry Bracket (not shown)
- Sanitary Fittings
- Sanitary Polish
- Polyurethane Wheels
- Stainless Type 316
Typical Assembly
Model T04W-6CBJ/15-45-SS304
- Hopper/tank on wheels
- 60 degree bottom cone, hinged cover
- Sanitary finish, SS304 materials
Jacket |
15 psig |
Max. capacity |
45 gallons |
Working capacity |
30 gallons |
Finish |
Sanitary polish, 240 grit |
Drain |
2" sanitary |
Wheels |
3" polypropylene |
|
|
Small Kettles
- 1 Quart to 1 Gallon Capacity
- Cone Bottom
- Heating/Cooling Jacket with Spiral Internal Baffling
- Flush Mounted Ball Valve
- Sanitary Fittings
- Sanitary Polish
- Split Cover, Mixing Shaft Opening, Handles
- Stainless Type 316

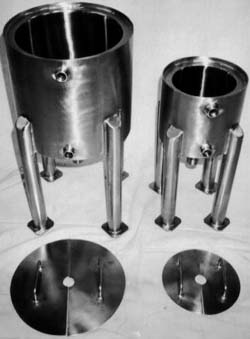

Typical Assemblies
Model
TFDU-1Q/G-75/SS
Model |
TFDU-1Q-75/SS |
TFDU-1G-75/SS |
Capacity |
1 quart |
1 gallon |
Inner shell diameter |
5" |
8" |
Pocket jacket diameter |
6.5" OD |
9.5" OD |
Bottom cone |
2" deep |
3" deep |
Jacket inlet/outlet |
3/8" MNPT |
3/8" MNPT |
Drain |
1/4" |
- |
Drain clearance |
- |
8" |
Top recess cover |
1/4" |
1/4" |
Cover, top |
6.3" OD, split |
7.8" OD, split |
Cover center hole |
1.2" diameter |
1.2" diameter |
Cover handles |
1/4", 2 req'd |
1/4", 2 req'd |
Legs, 4 req'd |
1" pipe |
1" pipe |
Leg pads |
2"x2", 12 ga |
2"x2", 12 ga |
Inside finish |
240 grit |
240 grit |
Outside finish |
150 grit |
150 grit |
|
|
Process Pails
Sanitary finish, cone bottom, heat tracing
Typical Assemblies
Model
TCO-007-SSP
- 1/2' x 1/2" x 1/2" clips for heat tracing, cone section & shell
bottom
- Cover with lip, 2 handles, exhaust collar
Model |
TCO-007-SSP |
TCO-012-SSP |
Max. capacity |
7 gallons |
12 gallons |
Working capacity |
5 gallons |
10 gallons |
Bottom cone depth |
3" |
3" |
Ball valve |
3/4" flush mounted |
2" flush mounted |
OAH |
40" |
45" |
Support tubing |
1 1/2" |
1 1/2" |
Finish |
240 grit polish |
240 grit polish |
Cover |
Exhaust collar |
Cut out for mixer entry |
Materials |
SS316 |
SS316 |
Application |
Lab mill |
Lab mill |
|
|
Vacuum Kettle - 10 Gallon
Model
DK-10-35P-SS (1) (2)
Features:
- Cover fixed to dual shaft
mixer/disperser
- Cover “O” ring, silicone, in groove
- Charge port on
cover, 4” Tri-Clover
- Vacuum port on cover, ½” FNPT
- Heating jacket on side
with staggered
internal spirals
- Closing toggle clamps, 4 required
- Flat bottom, reinforced
- Swivel & fixed casters with brakes,
4
required
- Handles on side, 2 required
- Drain, 2” FNPT, flush with bottom
- Inside and outside finish,
240 grit
- Materials: Stainless, type 304
Specifications:
- Capacity, working, 10 gallon
- Diameter, inside, 18”
- Depth 13”
- Casters, 4”, swivel (2) and fixed (2)
with brakes, carbon steel
- Jacket designed and tested for 45 psig
maximum. Internal spirals. Ports, 2
required, ¾” FNPT
- Cover seal “O” ring for
full vacuum
Applications:
- Dispersion, high shear blade,
blending , 3-blade anchor turbine,
with heating/cooling feature
- High viscous products, up to 100kcps
|
|
Kettle -
F&D Bottom, 1 Gallon
Model MKJ-01-15P-SS
Features
- Cover nest in top flange
- Split cover, not shown
- Heating jacket on side and F&D bottom with staggered internal
spirals
- Jacket ports, (2) required, ½” FNPT
- Flanged and dished (F&D) bottom, integral cylindrical stand
- Inside and outside finish, 240 grit
- Materials: Stainless, type
304
Specifications
- Capacity, working, 1 gallon
- Diameter, inside, 12”
- Depth 5”
- Jacket designed and tested for 25 psig maximum. Internal spirals.
Ports, 2 required, 1/2” FNPT
Applications
- Mixing/blending , 3-blade butterfly turbine, with heating/cooling
feature
- High viscous products, up to 100kcps
Other models
- Model MKJ-.5G-SS304 with capacity of ½ gallon, 10” inside
diameter and 5” depth
- 3-blade butterfly turbine, type DEF, attached to air mixer, Series
501D, with gear air motor is available as
option.
|
|
|
